Automatic optical bga reballing station
The machine DH-A2E is a full automatic BGA rework station with auto chip feeder,
display screen(15 inches, 1080P), auto optical CCD alignment system imported from
Panasonic, and carbon fiber heating tubes covered by glass-shield, etc. Used for pers-
onal repairing, munitions factory or University laboratory and other departments.
The product parameter of Automatic optical BGA reballing station
Total Power | 5200W |
Top heater | 1200W |
Bottom heater | 2nd 1200W, 3rd IR heater 2700W |
Power | AC110~240V±10％50/60Hz |
Auto feeding system for chip | |
Operation mode | Two modes: manual and automatic, free choose! HD touch screen, intelligent man-machine, digital system setting. |
Temperature profile storage | 50000 groups |
Optical CCD camera lens Chip feeder | Automatic stretching out and folding to pick and replace BGA chip， PLC controlling |
Camera magnification | 10x - 220x |
Workbench fine-tuning: | ±15mm forward/backward, ±15mm right/left |
Top micrometer | Max 60° |
Placement accuracy: | ±0.01mm |
BGA positioning | Laser positioning, fast and accurate position of PCB and BGA |
PCB position | Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groove PCB bracket + universal fixtures. |
Lighting | Taiwan led working light, 5W, any angle adjustable |
Temperature control | K sensor, close loop |
Temp accuracy | ±1℃ |
PCB size | Max 450×400 mm Min 22×22 mm |
BGA chip | 2x2 - 80x80 mm |
Minimum chip spacing | 0.1mm |
External temper sensor | 1pc |
Dimensions | L600×W700×H850 mm |
Net weight | 70KG |
The product details for automatic optical BGA reballing station

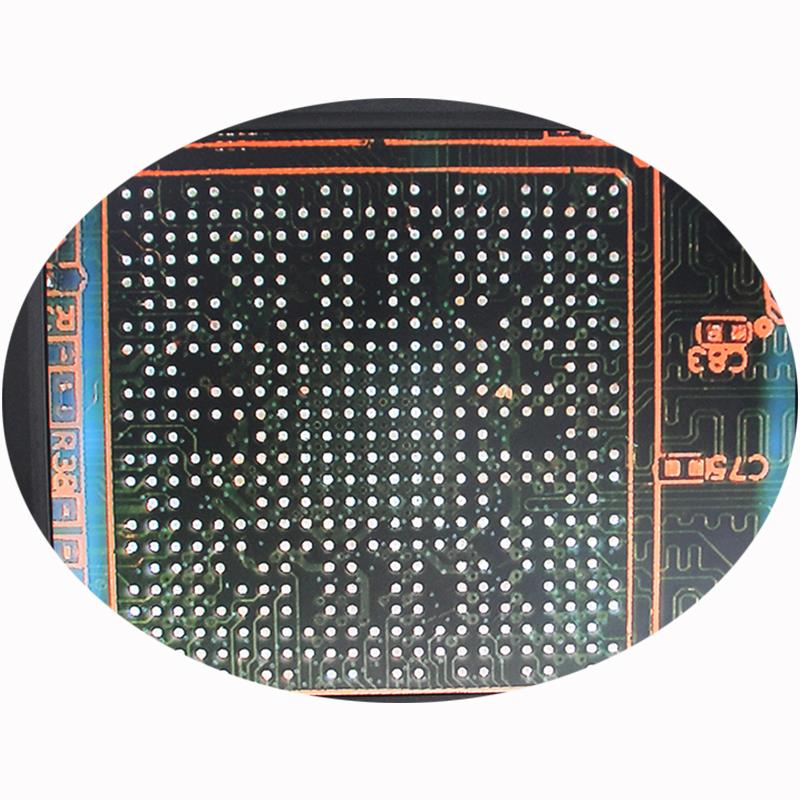

Display screen, 15 inches, 1080P, zoom in/out 10x~220x, all of the dots underneath chip or on
PCB can be seen clearly, imaging distinctly, automatically focus.

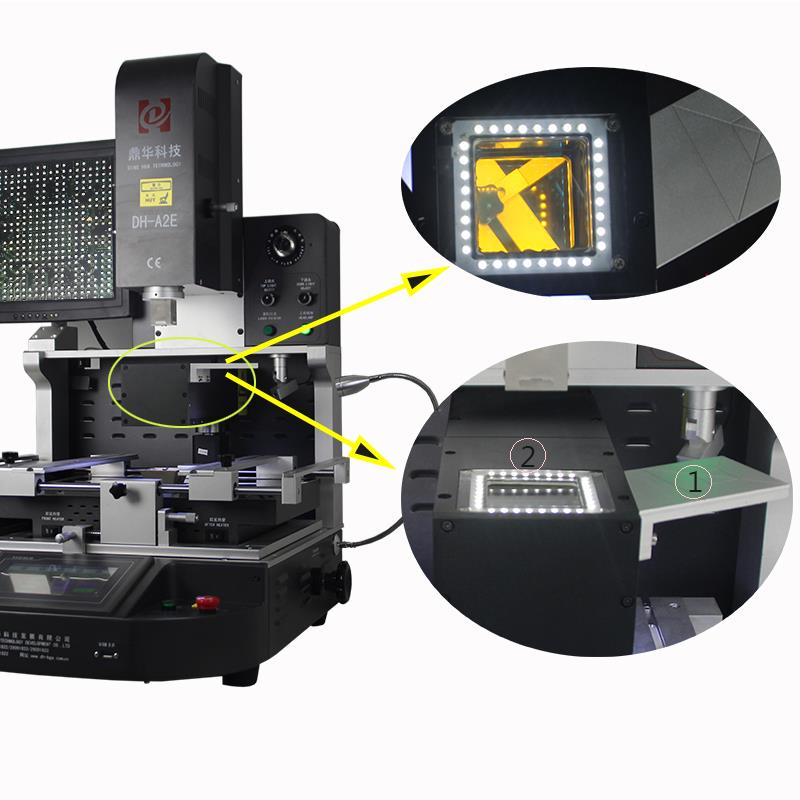

An automatically optical CCD and a chip feeder
This is a high-resolution optical CCD which is used for a PCBA and a chip to be imaged.
"1" is an automatic chip feeder which can be put on a chip with a size up to 80*80mm;
"2" is an optical CCD with a split vision for a PCB vs a chip aligned on a monitor screen.
Both of them are automatically running together for aligning, picked up and replaced, et.c

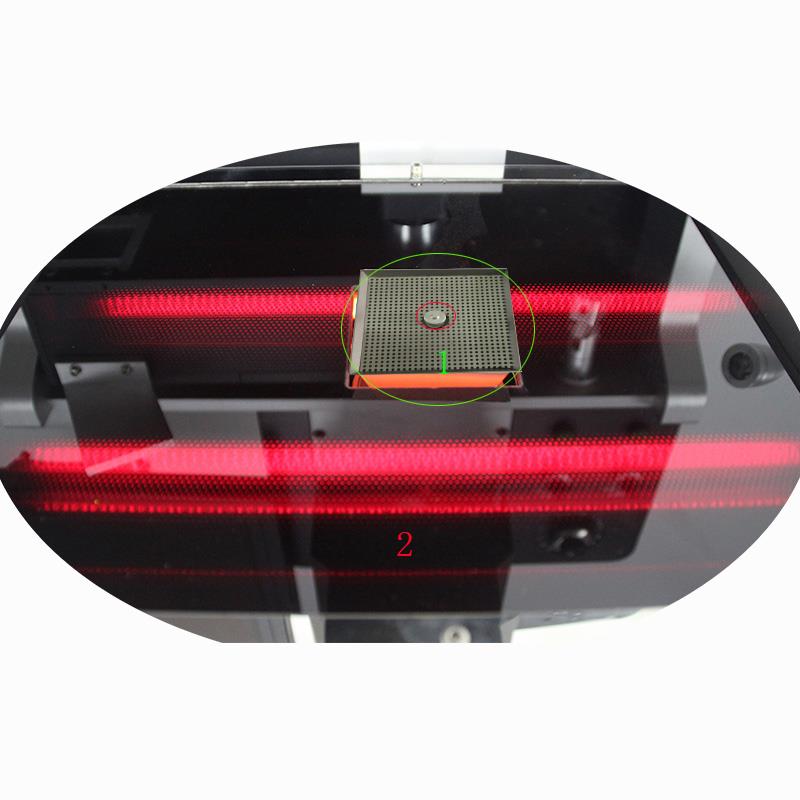

The lower hot air and IR
"1" is the lower hot-air heating nozzle, which can be customized from 2*2~80*80mm, even
though, up to 100*100mm, made of titanium alloy, will not get rusty, and with magnetic pe-
destal, can be installed simply and easily. There is also a small screw-shape at the center of
that nozzle, it can bracket a motherboard with a large size when heating.
"2" is the bottom IR preheating zone, and protected by a special glass covering, these carb-
on core heating tubes installed inside, which can release even heat energy, making a moth-
erboard be protected at the best.

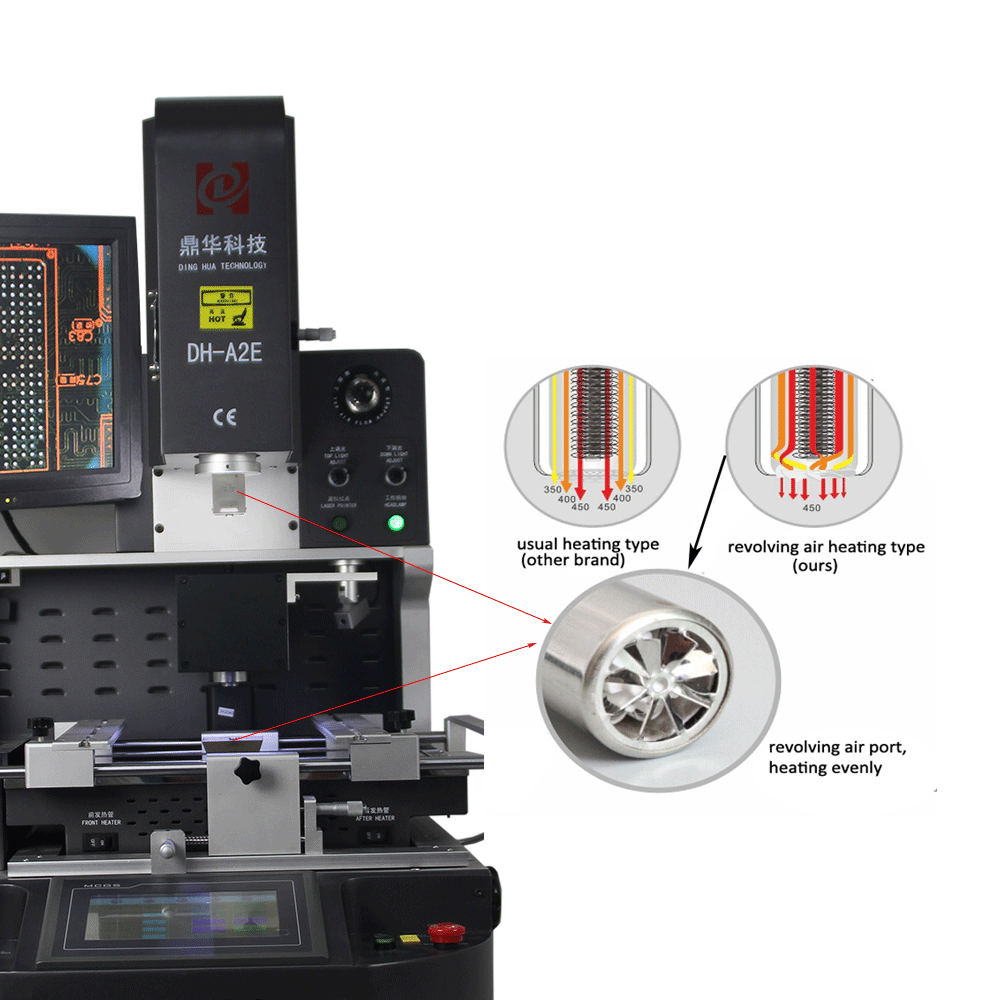

Hot air heating
Hot air heaters, upper & bottom heaters for air-flow making solder ball melted so that
soldering or desoldering a chip on a motherboard.
Made of imported materials which feature with even air-flow, and lasting heat, its using
life is more than 10 years.

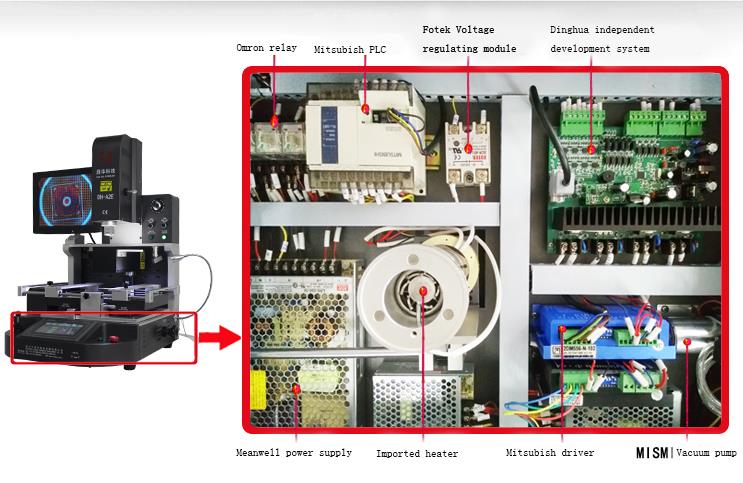

Our spare parts supplied by famous companies
Such as, Omron relay, Mitsubish PLC, Meanwell power supply, etc.
Packing and delivery:
Packed with strong plywood box for BGA rework station.
Deliveried by DHL, FedEx,TNT and SF, but also , railway, sea or air shipping ,
depending on quantity and customers' requirement.
