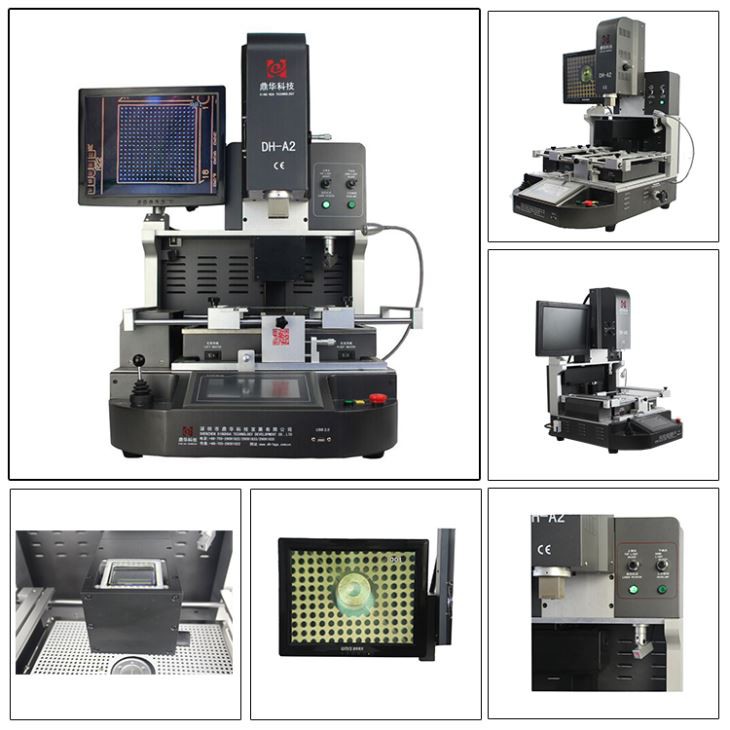

IRDA Touch Screen BGA Rework Machine

                                                                              IRDA touch screen bga rework machine

1.Application of  IRDA touch screen bga rework machine

Suitable for PCB of different electronic products.

Motherboard of computer, smart phone (  Iphone  , Huawei , Samsung ), laptop, MacBook logic board, digital

camera ,air conditioner,

TV and other electronic equipments from medical industry, communication industry, automobile industry, etc.

Suitable for different kind of chips: BGA,PGA,POP,BQFP,QFN,SOT223,PLCC,TQFP,TDFN,TSOP, PBGA,CPGA,

LED chip.

2.Product Features of IRDA touch screen bga rework machine

• Auto desoldering, mounting and soldering.

• Precise optical alignment system

Panasonic CCD camera lens effectively increase the accuracy of alignment and success rate of repairing. Image

dispayed on monitor screen.

• Three independently controlled heaters

Top and bottom heaters are hot-air heating, the third is infrared preheating zone, the top and bottom heaters can

set 8 segments rising temperature/

constant time/temperature rising slope , can save tens of thousands of groups temperature curves.

•Built-in infrared laser positioning, help fast positioning for PCB.

•Top heating head and mounting head 2 in 1 design.

•Mounting head with built-in pressure testing device, to protect the PCB from being crushed.

3.Specification of IRDA touch screen bga rework machine

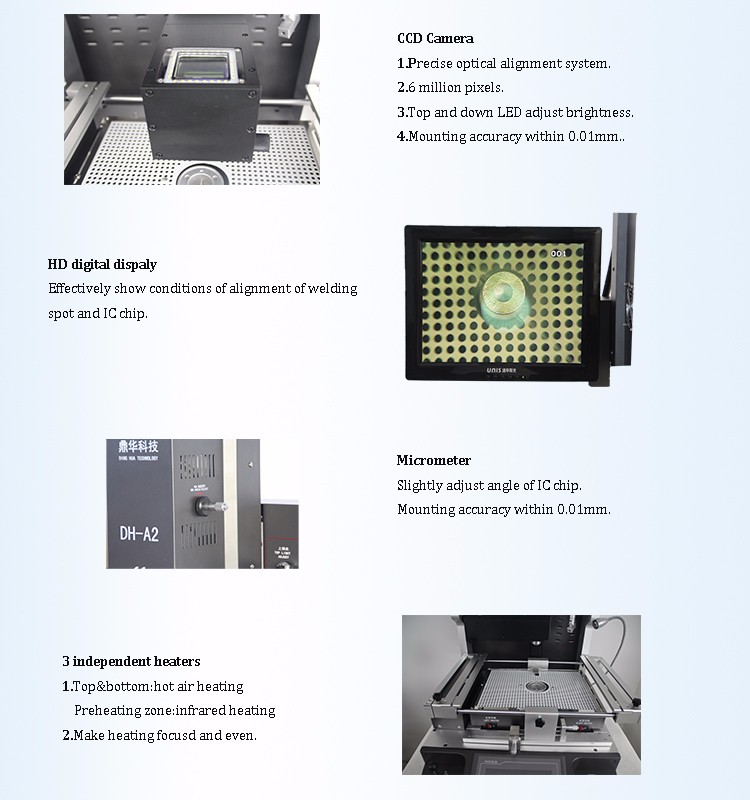

4.Details of IRDA touch screen bga rework machine

1.CCD camera( precise optical alignment system) ;

2.HD digital display ;

3. Micrometer (adjust angle of chip) ;

4.3 independent heaters ( hot air & infrared ) ;

5. Laser positioning ;

6. HD touch screen interface , PLC control ;

7.Led headlamp ;

8.Joystick control .

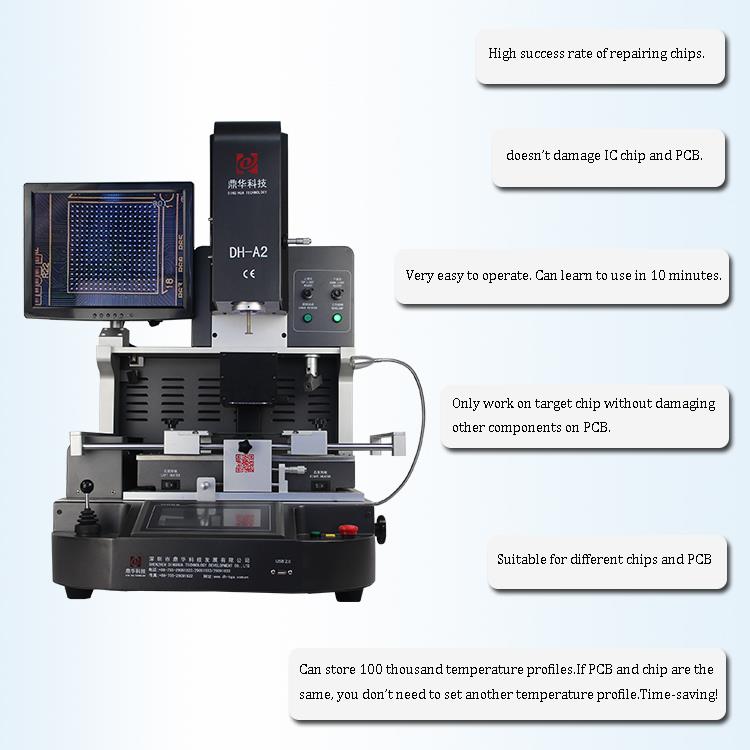

5.Why Choose Our IRDA touch screen bga rework machine?

6.Certificate of IRDA touch screen bga rework machine

To offer quality products, SHENZHEN DINGHUA TECHNOLOGY DEVELOPMENT CO.,LTD was the first to pass

UL, E-MARK, CCC, FCC, CE ROHS certificates. Meanwhile, to improve and perfect the quality system, Dinghua has

passed ISO, GMP, FCCA, C-TPAT on-site audit certification.

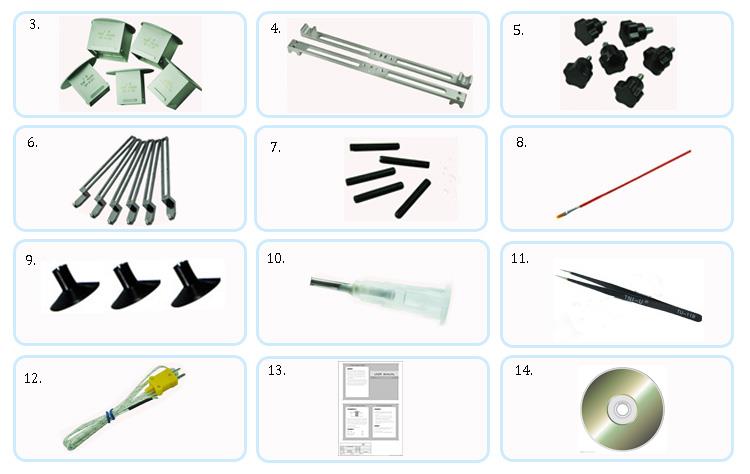

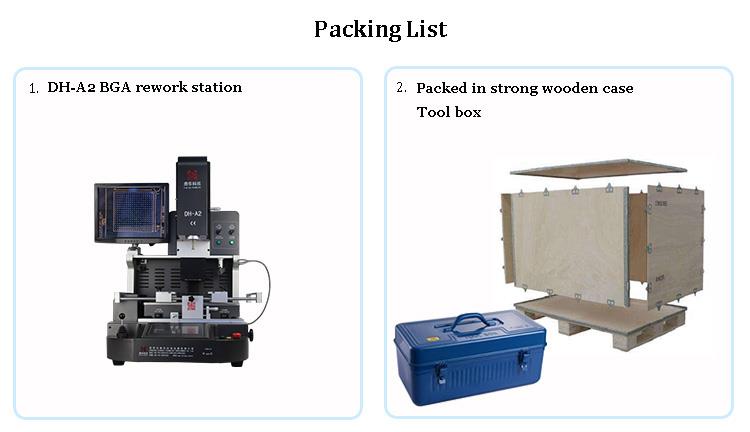

7.Packing & Shipment of IRDA touch screen bga rework machine

9.FAQ

• How does Dinghua BGA rework machine control temperature? Will the machine to hot so the PCB or chip will be damaged?

A: Dinghua BGA rework machine can heat PCB board and bga chips at the same time. And the third IR heater can preheat the PCB

board from bottom evenly, to avoid PCB from deformation during repair process. All three heaters can heat independently .

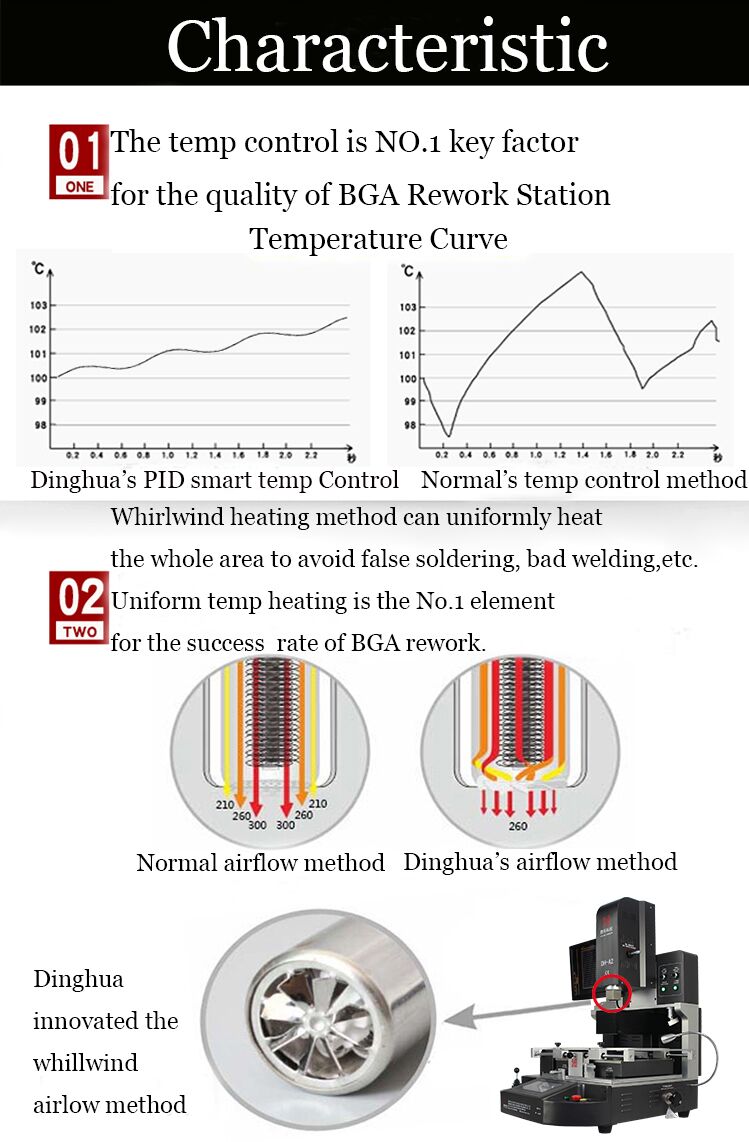

It uses k-type thermocouple closed-loop control and PID automatic temperature compensation system, together with PLC and temperature

 module to enable precise temperature deviation to ±2 degree centigrade.

•How does Dinghua BGA rework machine guarantee safety to avoid operator being hurt in case of any emergency?

A: Machines are CE certification guaranteed. It is equipped with emergency button. Also there is voice warning around 5 seconds before

soldering/desoldering process complete. With automatic power-off protection device when abnormal accident happens, with a double over-

heating protection control.

•I want to be an agent of SHENZHEN DINGHUA TECHNOLOGY DEVELOPMENT CO.,LTD. Do you offer OEM service.

A: SHENZHEN DINGHUA TECHNOLOGY DEVELOPMENT CO.,LTD. is looking for agents for different market in globe. We have our R&D

Department. OEM and ODM service are available. Warmly welcome business partners from all over to world to visit our factory.
